Introduction

The Square Pyramid Surface Area Calculator is a specialized tool designed to compute the volume, base diagonal, slant height, base area, lateral surface area, and total surface area of a square pyramid based on its base edge (\( a \)) and height (\( h \)). This calculator is essential for applications requiring precise geometric measurements, such as material estimation, architectural design, and educational purposes.

Why is the “Square Pyramid Surface Area Calculator” Important?

Accurate square pyramid calculations are vital for:

• Material Planning: Determining the amount of material (e.g., roofing, cladding) needed to cover the surfaces of a square pyramid.
• Design Optimization: Ensuring efficient design of pyramidal structures, such as monuments, roofs, or architectural features.
• Educational Purposes: Enhancing understanding of polyhedral geometry in mathematics and engineering education.
• Engineering Precision: Providing accurate measurements for construction and manufacturing projects involving square pyramids.

How the “Square Pyramid Surface Area Calculator” Works

The calculator processes user inputs—base edge and height with their respective units—to calculate the pyramid’s volume, base diagonal, slant height, base area, lateral surface area, and total surface area. It converts inputs to meters for consistent computations, applies geometric formulas, and provides results in multiple units (cm, m, in, ft for lengths; cm², m², mm², in², ft² for area; cm³, m³, in³, ft³ for volume) to suit various applications.

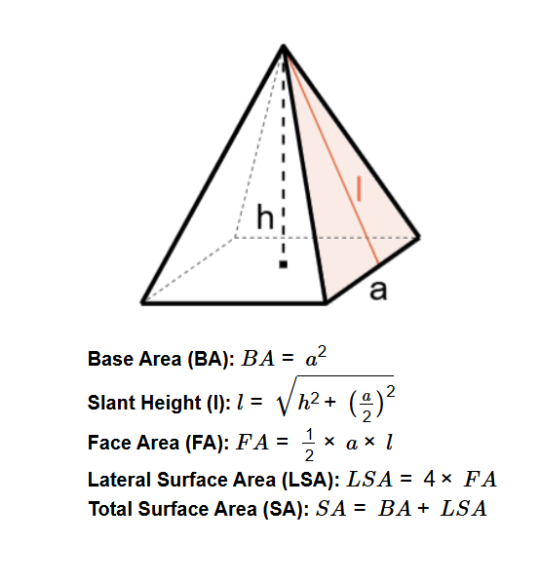

Formulas Used in the “Square Pyramid Surface Area Calculator”

The calculator employs the following equations:

• Volume: \( V = \frac{1}{3} a^2 h \)
• Base Diagonal: \( d = a \sqrt{2} \)
• Slant Height: \( l = \sqrt{h^2 + \left( \frac{a}{2} \right)^2} \)
• Base Area: \( BA = a^2 \)
• Lateral Surface Area: \( LSA = 2 a l \)
• Total Surface Area: \( TSA = BA + LSA = a^2 + 2 a l \)

Where:

• \( a \): Length of the base edge of the square base (in mm, cm, m, in, ft).
• \( h \): Height of the pyramid (in mm, cm, m, in, ft).
• \( d \): Diagonal of the square base (in cm, m, in, ft).
• \( l \): Slant height of the pyramid (in cm, m, in, ft).
• \( V \): Volume of the pyramid (in cm³, m³, in³, ft³).
• \( BA \): Area of the square base (in cm², m², mm², in², ft²).
• \( LSA \): Lateral surface area, comprising four triangular faces (in cm², m², mm², in², ft²).
• \( TSA \): Total surface area, including base and lateral surfaces (in cm², m², mm², in², ft²).

Step-by-Step Breakdown of the Formulas

The calculation process involves:

1. Input Base Edge and Height: Enter the base edge (\( a \)) and height (\( h \)) of the pyramid, selecting units (mm, cm, m, in, ft).
2. Validate Inputs: Ensure \( a \) and \( h \) are positive values.
3. Convert Units: Convert base edge and height to meters using conversion factors (e.g., 1 mm = 0.001 m).
4. Calculate Volume: Compute the volume using \( V = \frac{1}{3} a^2 h \).
5. Calculate Base Diagonal: Compute the base diagonal using \( d = a \sqrt{2} \).
6. Calculate Slant Height: Compute the slant height using \( l = \sqrt{h^2 + \left( \frac{a}{2} \right)^2} \).
7. Calculate Base Area: Compute the base area using \( BA = a^2 \).
8. Calculate Lateral Surface Area: Compute the lateral surface area using \( LSA = 2 a l \).
9. Calculate Total Surface Area: Compute the total surface area using \( TSA = BA + LSA \).
10. Convert Results: Convert volume to cm³, m³, in³, ft³; base diagonal and slant height to cm, m, in, ft; areas to cm², m², mm², in², ft².
11. Format Results: Display results with three decimal places for precision.

Example Calculation

6.1. Input Values

• Base Edge (\( a \)): 2 m
• Height (\( h \)): 3 m

6.2. Calculation Steps

1. Volume: \( V = \frac{1}{3} \times 2^2 \times 3 = \frac{1}{3} \times 4 \times 3 = 4.000 \, \text{m}^3 \)
2. Base Diagonal: \( d = 2 \times \sqrt{2} \approx 2 \times 1.414 = 2.828 \, \text{m} \)
3. Slant Height: \( l = \sqrt{3^2 + \left( \frac{2}{2} \right)^2} = \sqrt{9 + 1} = \sqrt{10} \approx 3.162 \, \text{m} \)
4. Base Area: \( BA = 2^2 = 4.000 \, \text{m}^2 \)
5. Lateral Surface Area: \( LSA = 2 \times 2 \times 3.162 \approx 4 \times 3.162 = 12.649 \, \text{m}^2 \)
6. Total Surface Area: \( TSA = 4.000 + 12.649 = 16.649 \, \text{m}^2 \)
7. Convert Units:
   • Volume: \( 4.000 \times 1000000 = 4000000.000 \, \text{cm}^3 \), \( 4.000 \div (0.0254)^3 \approx 244094.708 \, \text{in}^3 \), \( 4.000 \div (0.3048)^3 \approx 141.259 \, \text{ft}^3 \)
   • Base Diagonal: \( 2.828 \times 100 = 282.843 \, \text{cm} \), \( 2.828 \div 0.0254 \approx 111.339 \, \text{in} \), \( 2.828 \div 0.3048 \approx 9.278 \, \text{ft} \)
   • Slant Height: \( 3.162 \times 100 = 316.228 \, \text{cm} \), \( 3.162 \div 0.0254 \approx 124.488 \, \text{in} \), \( 3.162 \div 0.3048 \approx 10.374 \, \text{ft} \)
   • Base Area: \( 4.000 \times 10000 = 40000.000 \, \text{cm}^2 \), \( 4.000 \times 1000000 = 4000000.000 \, \text{mm}^2 \), \( 4.000 \times 1550 = 6200.000 \, \text{in}^2 \), \( 4.000 \times 10.7639 \approx 43.056 \, \text{ft}^2 \)
   • Lateral Surface Area: \( 12.649 \times 10000 = 126491.106 \, \text{cm}^2 \), \( 12.649 \times 1000000 = 126491106.265 \, \text{mm}^2 \), \( 12.649 \times 1550 \approx 19605.950 \, \text{in}^2 \), \( 12.649 \times 10.7639 \approx 136.149 \, \text{ft}^2 \)
   • Total Surface Area: \( 16.649 \times 10000 = 166491.106 \, \text{cm}^2 \), \( 16.649 \times 1000000 = 166491106.265 \, \text{mm}^2 \), \( 16.649 \times 1550 \approx 25805.950 \, \text{in}^2 \), \( 16.649 \times 10.7639 \approx 179.205 \, \text{ft}^2 \)
8. Results:
   • Volume: 4000000.000 cm³, 4.000 m³, 244094.708 in³, 141.259 ft³
   • Base Diagonal: 282.843 cm, 2.828 m, 111.339 in, 9.278 ft
   • Slant Height: 316.228 cm, 3.162 m, 124.488 in, 10.374 ft
   • Base Area: 40000.000 cm², 4.000 m², 4000000.000 mm², 6200.000 in², 43.056 ft²
   • Lateral Surface Area: 126491.106 cm², 12.649 m², 126491106.265 mm², 19605.950 in², 136.149 ft²
   • Total Surface Area: 166491.106 cm², 16.649 m², 166491106.265 mm², 25805.950 in², 179.205 ft²

Conclusion

The Square Pyramid Surface Area Calculator simplifies the computation of a square pyramid’s volume, base diagonal, slant height, base area, lateral surface area, and total surface area, providing results in multiple units for diverse applications. Its accuracy and user-friendly interface make it an essential tool for education, engineering, and design.

How to Use the “Square Pyramid Surface Area Calculator”

8.1. Understanding the Input Fields

• Base Edge (\( a \)): Enter the length of the base edge of the square base and select a unit (mm, cm, m, in, ft).
• Height (\( h \)): Enter the height of the pyramid and select a unit (mm, cm, m, in, ft).

8.2. How to Interpret the Results

• Volume: The volume in cm³, m³, in³, ft³ (to 3 decimal places).
• Base Diagonal: The diagonal of the square base in cm, m, in, ft (to 3 decimal places).
• Slant Height: The slant height in cm, m, in, ft (to 3 decimal places).
• Base Area: The area of the square base in cm², m², mm², in², ft² (to 3 decimal places).
• Lateral Surface Area (LSA): The lateral surface area of the four triangular faces in cm², m², mm², in², ft² (to 3 decimal places).
• Total Surface Area: The total surface area, including base and lateral surfaces, in cm², m², mm², in², ft² (to 3 decimal places).

Practical Applications & Expert Insights

9.1. Where the “Square Pyramid Surface Area Calculator” is Used

• Architecture: Designing pyramidal structures like monuments, roofs, or pavilions.
• Manufacturing: Calculating material needs for pyramidal components or models.
• Education: Teaching geometric concepts of pyramids in mathematics and engineering courses.
• Product Design: Estimating surface area for coating, painting, or wrapping pyramidal objects.

9.2. Real-Life Scenarios

• Construction Project: An architect calculates the surface area of a square pyramidal roof to determine the amount of roofing material required.
• Industrial Production: A manufacturer estimates the material needed for a square pyramidal component in a mechanical assembly.
• Classroom Learning: A student verifies pyramid volume and surface area calculations for a geometry assignment.

9.3. Expert Recommendations

• Precision in Measurements: Ensure accurate base edge and height inputs, as errors can significantly affect calculations.
• Unit Consistency: Use the same unit for base edge and height to avoid conversion errors.
• Material Allowance: Add 5-10% to the surface area for waste or overlap when planning material purchases.
• Verification: Cross-check results with manual calculations or CAD software for critical applications.

Frequently Asked Questions (FAQs)

10.1. What is the Square Pyramid Surface Area Calculator?

It’s a tool that calculates the volume, base diagonal, slant height, base area, lateral surface area, and total surface area of a square pyramid based on its base edge and height.

10.2. How is the surface area of a square pyramid determined?

The total surface area is calculated using \( TSA = a^2 + 2 a l \), where \( a \) is the base edge and \( l \) is the slant height.

10.3. Why are multiple units provided for results?

Multiple units (cm, m, in, ft for lengths; cm², m², mm², in², ft² for area; cm³, m³, in³, ft³ for volume) accommodate diverse user needs across regions and industries.

10.4. Can the calculator handle negative or zero inputs?

No, base edge and height must be positive, as negative or zero values are invalid for a pyramid’s geometry.

10.5. What are the practical applications of square pyramid calculations?

They are used in architecture, manufacturing, education, and product design to estimate material requirements and analyze pyramidal structures.

10.6. Where can I find more information on square pyramid geometry?

Refer to geometry textbooks, online resources like MathWorld (mathworld.wolfram.com), or consult mathematics educators for detailed properties of square pyramids.
