Introduction

The Rectangular Pyramid Surface Area Calculator is a powerful tool designed to compute the volume, base diagonal, slant heights, base area, lateral surface area, and total surface area of a rectangular pyramid based on its base length (\( a \)), base width (\( b \)), and height (\( h \)). This calculator is essential for applications requiring precise geometric measurements, such as material estimation, architectural design, and educational purposes.

Why is the “Rectangular Pyramid Surface Area Calculator” Important?

Accurate rectangular pyramid calculations are vital for:

  • Material Planning: Determining the amount of material (e.g., roofing, cladding) needed to cover the surfaces of a rectangular pyramid.
  • Design Optimization: Ensuring efficient design of pyramidal structures, such as monuments, roofs, or architectural features.
  • Educational Purposes: Enhancing understanding of polyhedral geometry in mathematics and engineering education.
  • Engineering Precision: Providing accurate measurements for construction and manufacturing projects involving rectangular pyramids.

How the “Rectangular Pyramid Surface Area Calculator” Works

The calculator processes user inputs—base length, base width, and height with their respective units—to calculate the pyramid’s volume, base diagonal, slant heights, base area, lateral surface area, and total surface area. It converts inputs to meters for consistent computations, applies geometric formulas, and provides results in multiple units (cm, m, in, ft for lengths; cm², m², mm², in², ft² for area; cm³, m³, in³, ft³ for volume) to suit various applications.

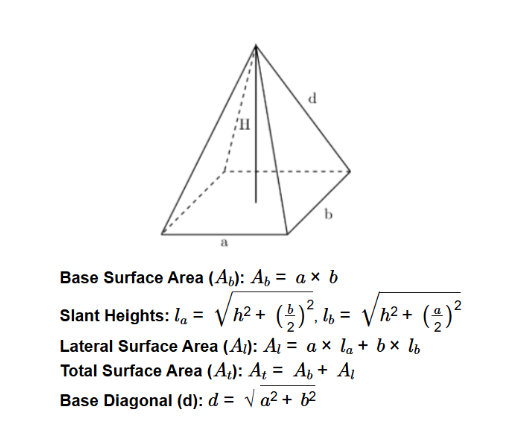

Formulas Used in the “Rectangular Pyramid Surface Area Calculator”

The calculator employs the following equations:

  • Volume: \( V = \frac{1}{3} a b h \)
  • Base Diagonal: \( d = \sqrt{a^2 + b^2} \)
  • Slant Height (Length Side): \( l_a = \sqrt{h^2 + \left( \frac{b}{2} \right)^2} \)
  • Slant Height (Width Side): \( l_b = \sqrt{h^2 + \left( \frac{a}{2} \right)^2} \)
  • Base Area: \( BA = a b \)
  • Lateral Surface Area: \( LSA = a l_a + b l_b \)
  • Total Surface Area: \( TSA = BA + LSA \)
Where:
  • \( a \): Length of the rectangular base (in mm, cm, m, in, ft).
  • \( b \): Width of the rectangular base (in mm, cm, m, in, ft).
  • \( h \): Height of the pyramid (in mm, cm, m, in, ft).
  • \( d \): Diagonal of the rectangular base (in cm, m, in, ft).
  • \( l_a \): Slant height for the length side (in cm, m, in, ft).
  • \( l_b \): Slant height for the width side (in cm, m, in, ft).
  • \( V \): Volume of the pyramid (in cm³, m³, in³, ft³).
  • \( BA \): Area of the rectangular base (in cm², m², mm², in², ft²).
  • \( LSA \): Lateral surface area, comprising four triangular faces (in cm², m², mm², in², ft²).
  • \( TSA \): Total surface area, including base and lateral surfaces (in cm², m², mm², in², ft²).

Step-by-Step Breakdown of the Formulas

The calculation process involves:

  1. Input Dimensions: Enter the base length (\( a \)), base width (\( b \)), and height (\( h \)) of the pyramid, selecting units (mm, cm, m, in, ft).
  2. Validate Inputs: Ensure \( a \), \( b \), and \( h \) are positive values.
  3. Convert Units: Convert base length, base width, and height to meters using conversion factors (e.g., 1 mm = 0.001 m).
  4. Calculate Volume: Compute the volume using \( V = \frac{1}{3} a b h \).
  5. Calculate Base Diagonal: Compute the base diagonal using \( d = \sqrt{a^2 + b^2} \).
  6. Calculate Slant Heights: Compute the slant heights using \( l_a = \sqrt{h^2 + \left( \frac{b}{2} \right)^2} \) and \( l_b = \sqrt{h^2 + \left( \frac{a}{2} \right)^2} \).
  7. Calculate Base Area: Compute the base area using \( BA = a b \).
  8. Calculate Lateral Surface Area: Compute the lateral surface area using \( LSA = a l_a + b l_b \).
  9. Calculate Total Surface Area: Compute the total surface area using \( TSA = BA + LSA \).
  10. Convert Results: Convert volume to cm³, m³, in³, ft³; base diagonal and slant heights to cm, m, in, ft; areas to cm², m², mm², in², ft².
  11. Format Results: Display results with three decimal places for precision.

Example Calculation

6.1. Input Values
  • Base Length (\( a \)): 3 m
  • Base Width (\( b \)): 2 m
  • Height (\( h \)): 4 m
6.2. Calculation Steps
  1. Volume: \( V = \frac{1}{3} \times 3 \times 2 \times 4 = \frac{1}{3} \times 24 = 8.000 \, \text{m}^3 \)
  2. Base Diagonal: \( d = \sqrt{3^2 + 2^2} = \sqrt{9 + 4} = \sqrt{13} \approx 3.606 \, \text{m} \)
  3. Slant Height (Length Side): \( l_a = \sqrt{4^2 + \left( \frac{2}{2} \right)^2} = \sqrt{16 + 1} = \sqrt{17} \approx 4.123 \, \text{m} \)
  4. Slant Height (Width Side): \( l_b = \sqrt{4^2 + \left( \frac{3}{2} \right)^2} = \sqrt{16 + 2.25} = \sqrt{18.25} \approx 4.272 \, \text{m} \)
  5. Base Area: \( BA = 3 \times 2 = 6.000 \, \text{m}^2 \)
  6. Lateral Surface Area: \( LSA = 3 \times 4.123 + 2 \times 4.272 \approx 12.369 + 8.544 = 20.913 \, \text{m}^2 \)
  7. Total Surface Area: \( TSA = 6.000 + 20.913 = 26.913 \, \text{m}^2 \)
  8. Convert Units:
    • Volume: \( 8.000 \times 1000000 = 8000000.000 \, \text{cm}^3 \), \( 8.000 \div (0.0254)^3 \approx 488189.415 \, \text{in}^3 \), \( 8.000 \div (0.3048)^3 \approx 282.517 \, \text{ft}^3 \)
    • Base Diagonal: \( 3.606 \times 100 = 360.555 \, \text{cm} \), \( 3.606 \div 0.0254 \approx 141.969 \, \text{in} \), \( 3.606 \div 0.3048 \approx 11.831 \, \text{ft} \)
    • Slant Height (Length Side): \( 4.123 \times 100 = 412.311 \, \text{cm} \), \( 4.123 \div 0.0254 \approx 162.323 \, \text{in} \), \( 4.123 \div 0.3048 \approx 13.527 \, \text{ft} \)
    • Slant Height (Width Side): \( 4.272 \times 100 = 427.207 \, \text{cm} \), \( 4.272 \div 0.0254 \approx 168.189 \, \text{in} \), \( 4.272 \div 0.3048 \approx 14.016 \, \text{ft} \)
    • Base Area: \( 6.000 \times 10000 = 60000.000 \, \text{cm}^2 \), \( 6.000 \times 1000000 = 6000000.000 \, \text{mm}^2 \), \( 6.000 \times 1550 = 9300.000 \, \text{in}^2 \), \( 6.000 \times 10.7639 \approx 64.583 \, \text{ft}^2 \)
    • Lateral Surface Area: \( 20.913 \times 10000 = 209134.260 \, \text{cm}^2 \), \( 20.913 \times 1000000 = 209134259.774 \, \text{mm}^2 \), \( 20.913 \times 1550 \approx 32415.960 \, \text{in}^2 \), \( 20.913 \times 10.7639 \approx 225.112 \, \text{ft}^2 \)
    • Total Surface Area: \( 26.913 \times 10000 = 269134.260 \, \text{cm}^2 \), \( 26.913 \times 1000000 = 269134259.774 \, \text{mm}^2 \), \( 26.913 \times 1550 \approx 41715.960 \, \text{in}^2 \), \( 26.913 \times 10.7639 \approx 289.695 \, \text{ft}^2 \)
  9. Results:
    • Volume: 8000000.000 cm³, 8.000 m³, 488189.415 in³, 282.517 ft³
    • Base Diagonal: 360.555 cm, 3.606 m, 141.969 in, 11.831 ft
    • Slant Height (Length Side): 412.311 cm, 4.123 m, 162.323 in, 13.527 ft
    • Slant Height (Width Side): 427.207 cm, 4.272 m, 168.189 in, 14.016 ft
    • Base Area: 60000.000 cm², 6.000 m², 6000000.000 mm², 9300.000 in², 64.583 ft²
    • Lateral Surface Area: 209134.260 cm², 20.913 m², 209134259.774 mm², 32415.960 in², 225.112 ft²
    • Total Surface Area: 269134.260 cm², 26.913 m², 269134259.774 mm², 41715.960 in², 289.695 ft²

Conclusion

The Rectangular Pyramid Surface Area Calculator simplifies the computation of a rectangular pyramid’s volume, base diagonal, slant heights, base area, lateral surface area, and total surface area, providing results in multiple units for diverse applications. Its accuracy and user-friendly interface make it an essential tool for education, engineering, and design.

How to Use the “Rectangular Pyramid Surface Area Calculator”

8.1. Understanding the Input Fields
  • Base Length (\( a \)): Enter the length of the rectangular base and select a unit (mm, cm, m, in, ft).
  • Base Width (\( b \)): Enter the width of the rectangular base and select a unit (mm, cm, m, in, ft).
  • Height (\( h \)): Enter the height of the pyramid and select a unit (mm, cm, m, in, ft).
8.2. How to Interpret the Results
  • Volume: The volume in cm³, m³, in³, ft³ (to 3 decimal places).
  • Base Diagonal: The diagonal of the rectangular base in cm, m, in, ft (to 3 decimal places).
  • Slant Height (Length Side, \( l_a \)): The slant height for the length side in cm, m, in, ft (to 3 decimal places).
  • Slant Height (Width Side, \( l_b \)): The slant height for the width side in cm, m, in, ft (to 3 decimal places).
  • Base Area: The area of the rectangular base in cm², m², mm², in², ft² (to 3 decimal places).
  • Lateral Surface Area: The lateral surface area of the four triangular faces in cm², m², mm², in², ft² (to 3 decimal places).
  • Total Surface Area: The total surface area, including base and lateral surfaces, in cm², m², mm², in², ft² (to 3 decimal places).

Practical Applications & Expert Insights

9.1. Where the “Rectangular Pyramid Surface Area Calculator” is Used
  • Architecture: Designing pyramidal structures like monuments, roofs, or pavilions.
  • Manufacturing: Calculating material needs for pyramidal components or models.
  • Education: Teaching geometric concepts of pyramids in mathematics and engineering courses.
  • Product Design: Estimating surface area for coating, painting, or wrapping pyramidal objects.
9.2. Real-Life Scenarios
  • Construction Project: An architect calculates the surface area of a rectangular pyramidal roof to determine the amount of roofing material required.
  • Industrial Production: A manufacturer estimates the material needed for a pyramidal component in a mechanical assembly.
  • Classroom Learning: A student verifies pyramid volume and surface area calculations for a geometry assignment.
9.3. Expert Recommendations
  • Precision in Measurements: Ensure accurate base length, base width, and height inputs, as errors can significantly affect calculations.
  • Unit Consistency: Use the same unit for all dimensions to avoid conversion errors.
  • Material Allowance: Add 5-10% to the surface area for waste or overlap when planning material purchases.
  • Verification: Cross-check results with manual calculations or CAD software for critical applications.

Frequently Asked Questions (FAQs)

10.1. What is the Rectangular Pyramid Surface Area Calculator?

It’s a tool that calculates the volume, base diagonal, slant heights, base area, lateral surface area, and total surface area of a rectangular pyramid based on its base length, base width, and height.

10.2. How is the surface area of a rectangular pyramid determined?

The total surface area is calculated using \( TSA = a b + a l_a + b l_b \), where \( a \) is the base length, \( b \) is the base width, \( l_a \) is the slant height for the length side, and \( l_b \) is the slant height for the width side.

10.3. Why are multiple units provided for results?

Multiple units (cm, m, in, ft for lengths; cm², m², mm², in², ft² for area; cm³, m³, in³, ft³ for volume) accommodate diverse user needs across regions and industries.

10.4. Can the calculator handle negative or zero inputs?

No, base length, base width, and height must be positive, as negative or zero values are invalid for a pyramid’s geometry.

10.5. What are the practical applications of rectangular pyramid calculations?

They are used in architecture, manufacturing, education, and product design to estimate material requirements and analyze pyramidal structures.

10.6. Where can I find more information on rectangular pyramid geometry?

Refer to geometry textbooks, online resources like MathWorld (mathworld.wolfram.com), or consult mathematics educators for detailed properties of rectangular pyramids.
