Introduction

The Hexagonal Pyramid Surface Area Calculator is a specialized tool designed to compute the volume, slant height, base area, lateral surface area, and total surface area of a regular hexagonal pyramid based on its base edge (\( a \)) and height (\( h \)). This calculator is essential for applications requiring precise geometric measurements, such as material estimation, architectural design, and educational purposes.

Why is the “Hexagonal Pyramid Surface Area Calculator” Important?

Accurate hexagonal pyramid calculations are vital for:

• Material Planning: Determining the amount of material (e.g., roofing, cladding) needed to cover the surfaces of a hexagonal pyramid.
• Design Optimization: Ensuring efficient design of pyramidal structures, such as pavilions, tents, or architectural features.
• Educational Purposes: Enhancing understanding of polyhedral geometry in mathematics and engineering education.
• Engineering Precision: Providing accurate measurements for construction and manufacturing projects involving hexagonal pyramids.

How the “Hexagonal Pyramid Surface Area Calculator” Works

The calculator processes user inputs—base edge and height with their respective units—to calculate the pyramid’s volume, slant height, base area, lateral surface area, and total surface area. It converts inputs to meters for consistent computations, applies geometric formulas, and provides results in multiple units (cm, m, in, ft for lengths; cm², m², mm², in², ft² for area; cm³, m³, in³, ft³ for volume) to suit various applications.

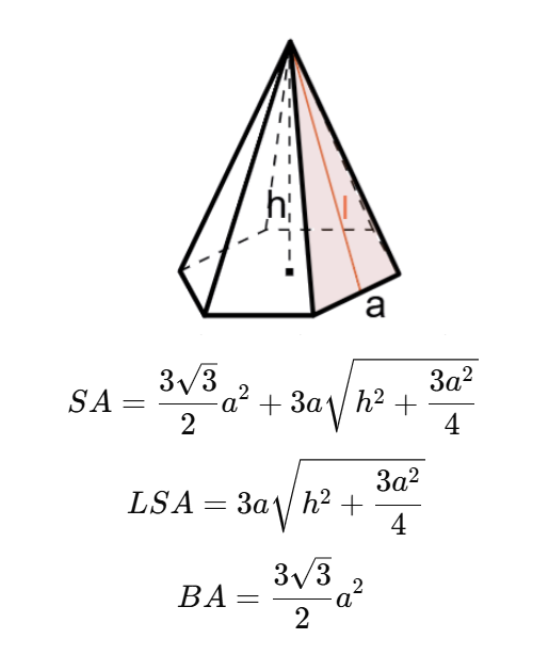

Formulas Used in the “Hexagonal Pyramid Surface Area Calculator”

The calculator employs the following equations:

• Volume: \( V = \frac{\sqrt{3}}{2} a^2 h \)
• Slant Height: \( s = \sqrt{h^2 + \left( \frac{a \sqrt{3}}{2} \right)^2} \)
• Base Area: \( BA = \frac{3 \sqrt{3}}{2} a^2 \)
• Lateral Surface Area: \( LSA = 3 a s \)
• Total Surface Area: \( TSA = BA + LSA = \frac{3 \sqrt{3}}{2} a^2 + 3 a s \)

Where:

• \( a \): Length of the base edge of the hexagonal base (in mm, cm, m, in, ft).
• \( h \): Height of the pyramid (in mm, cm, m, in, ft).
• \( s \): Slant height of the pyramid (in cm, m, in, ft).
• \( V \): Volume of the pyramid (in cm³, m³, in³, ft³).
• \( BA \): Area of the hexagonal base (in cm², m², mm², in², ft²).
• \( LSA \): Lateral surface area, comprising six triangular faces (in cm², m², mm², in², ft²).
• \( TSA \): Total surface area, including base and lateral surfaces (in cm², m², mm², in², ft²).

Step-by-Step Breakdown of the Formulas

The calculation process involves:

1. Input Base Edge and Height: Enter the base edge (\( a \)) and height (\( h \)) of the pyramid, selecting units (mm, cm, m, in, ft).
2. Validate Inputs: Ensure \( a \) and \( h \) are positive values.
3. Convert Units: Convert base edge and height to meters using conversion factors (e.g., 1 mm = 0.001 m).
4. Calculate Volume: Compute the volume using \( V = \frac{\sqrt{3}}{2} a^2 h \).
5. Calculate Slant Height: Compute the slant height using \( s = \sqrt{h^2 + \left( \frac{a \sqrt{3}}{2} \right)^2} \).
6. Calculate Base Area: Compute the base area using \( BA = \frac{3 \sqrt{3}}{2} a^2 \).
7. Calculate Lateral Surface Area: Compute the lateral surface area using \( LSA = 3 a s \).
8. Calculate Total Surface Area: Compute the total surface area using \( TSA = BA + LSA \).
9. Convert Results: Convert volume to cm³, m³, in³, ft³; slant height to cm, m, in, ft; areas to cm², m², mm², in², ft².
10. Format Results: Display results with three decimal places for precision.

Example Calculation

6.1. Input Values

• Base Edge (\( a \)): 2 m
• Height (\( h \)): 3 m

6.2. Calculation Steps

1. Volume: \( V = \frac{\sqrt{3}}{2} \times 2^2 \times 3 = \frac{\sqrt{3}}{2} \times 4 \times 3 \approx \frac{1.732}{2} \times 12 \approx 10.392 \, \text{m}^3 \)
2. Slant Height: \( s = \sqrt{3^2 + \left( \frac{2 \sqrt{3}}{2} \right)^2} = \sqrt{9 + \left( \sqrt{3} \right)^2} = \sqrt{9 + 3} = \sqrt{12} \approx 3.464 \, \text{m} \)
3. Base Area: \( BA = \frac{3 \sqrt{3}}{2} \times 2^2 = \frac{3 \sqrt{3}}{2} \times 4 \approx \frac{3 \times 1.732}{2} \times 4 \approx 10.392 \, \text{m}^2 \)
4. Lateral Surface Area: \( LSA = 3 \times 2 \times 3.464 \approx 6 \times 3.464 \approx 20.784 \, \text{m}^2 \)
5. Total Surface Area: \( TSA = 10.392 + 20.784 = 31.176 \, \text{m}^2 \)
6. Convert Units:
   • Volume: \( 10.392 \times 1000000 = 10392304.846 \, \text{cm}^3 \), \( 10.392 \div (0.0254)^3 \approx 633983.122 \, \text{in}^3 \), \( 10.392 \div (0.3048)^3 \approx 367.082 \, \text{ft}^3 \)
   • Slant Height: \( 3.464 \times 100 = 346.410 \, \text{cm} \), \( 3.464 \div 0.0254 \approx 136.378 \, \text{in} \), \( 3.464 \div 0.3048 \approx 11.365 \, \text{ft} \)
   • Base Area: \( 10.392 \times 10000 = 103923.048 \, \text{cm}^2 \), \( 10.392 \times 1000000 = 103923048.463 \, \text{mm}^2 \), \( 10.392 \times 1550 \approx 16107.888 \, \text{in}^2 \), \( 10.392 \times 10.7639 \approx 111.846 \, \text{ft}^2 \)
   • Lateral Surface Area: \( 20.784 \times 10000 = 207846.097 \, \text{cm}^2 \), \( 20.784 \times 1000000 = 207846096.925 \, \text{mm}^2 \), \( 20.784 \times 1550 \approx 32215.776 \, \text{in}^2 \), \( 20.784 \times 10.7639 \approx 223.692 \, \text{ft}^2 \)
   • Total Surface Area: \( 31.176 \times 10000 = 311769.145 \, \text{cm}^2 \), \( 31.176 \times 1000000 = 311769145.388 \, \text{mm}^2 \), \( 31.176 \times 1550 \approx 48323.664 \, \text{in}^2 \), \( 31.176 \times 10.7639 \approx 335.538 \, \text{ft}^2 \)
7. Results:
   • Volume: 10392304.846 cm³, 10.392 m³, 633983.122 in³, 367.082 ft³
   • Slant Height: 346.410 cm, 3.464 m, 136.378 in, 11.365 ft
   • Base Area: 103923.048 cm², 10.392 m², 103923048.463 mm², 16107.888 in², 111.846 ft²
   • Lateral Surface Area: 207846.097 cm², 20.784 m², 207846096.925 mm², 32215.776 in², 223.692 ft²
   • Total Surface Area: 311769.145 cm², 31.176 m², 311769145.388 mm², 48323.664 in², 335.538 ft²

Conclusion

The Hexagonal Pyramid Surface Area Calculator simplifies the computation of a hexagonal pyramid’s volume, slant height, base area, lateral surface area, and total surface area, providing results in multiple units for diverse applications. Its accuracy and user-friendly interface make it an essential tool for education, engineering, and design.

How to Use the “Hexagonal Pyramid Surface Area Calculator”

8.1. Understanding the Input Fields

• Base Edge (\( a \)): Enter the length of the base edge of the hexagonal base and select a unit (mm, cm, m, in, ft).
• Height (\( h \)): Enter the height of the pyramid and select a unit (mm, cm, m, in, ft).

8.2. How to Interpret the Results

• Volume: The volume in cm³, m³, in³, ft³ (to 3 decimal places).
• Slant Height: The slant height in cm, m, in, ft (to 3 decimal places).
• Base Area: The area of the hexagonal base in cm², m², mm², in², ft² (to 3 decimal places).
• Lateral Surface Area (LSA): The lateral surface area of the six triangular faces in cm², m², mm², in², ft² (to 3 decimal places).
• Total Surface Area: The total surface area, including base and lateral surfaces, in cm², m², mm², in², ft² (to 3 decimal places).

Practical Applications & Expert Insights

9.1. Where the “Hexagonal Pyramid Surface Area Calculator” is Used

• Architecture: Designing pyramidal structures like pavilions, tents, or decorative roofs.
• Manufacturing: Calculating material needs for hexagonal pyramidal components or models.
• Education: Teaching geometric concepts of polyhedra in mathematics and engineering courses.
• Product Design: Estimating surface area for coating, painting, or wrapping pyramidal objects.

9.2. Real-Life Scenarios

• Construction Project: An architect calculates the surface area of a hexagonal pyramidal roof to determine the amount of roofing material required.
• Industrial Production: A manufacturer estimates the material needed for a hexagonal pyramidal component in a mechanical assembly.
• Classroom Learning: A student verifies pyramid volume and surface area calculations for a geometry assignment.

9.3. Expert Recommendations

• Precision in Measurements: Ensure accurate base edge and height inputs, as errors can significantly affect calculations.
• Unit Consistency: Use the same unit for base edge and height to avoid conversion errors.
• Material Allowance: Add 5-10% to the surface area for waste or overlap when planning material purchases.
• Verification: Cross-check results with manual calculations or CAD software for critical applications.

Frequently Asked Questions (FAQs)

10.1. What is the Hexagonal Pyramid Surface Area Calculator?

It’s a tool that calculates the volume, slant height, base area, lateral surface area, and total surface area of a regular hexagonal pyramid based on its base edge and height.

10.2. How is the surface area of a hexagonal pyramid determined?

The total surface area is calculated using \( TSA = \frac{3 \sqrt{3}}{2} a^2 + 3 a s \), where \( a \) is the base edge and \( s \) is the slant height.

10.3. Why are multiple units provided for results?

Multiple units (cm, m, in, ft for lengths; cm², m², mm², in², ft² for area; cm³, m³, in³, ft³ for volume) accommodate diverse user needs across regions and industries.

10.4. Can the calculator handle negative or zero inputs?

No, base edge and height must be positive, as negative or zero values are invalid for a pyramid’s geometry.

10.5. What are the practical applications of hexagonal pyramid calculations?

They are used in architecture, manufacturing, education, and product design to estimate material requirements and analyze pyramidal structures.

10.6. Where can I find more information on hexagonal pyramid geometry?

Refer to geometry textbooks, online resources like MathWorld (mathworld.wolfram.com), or consult mathematics educators for detailed properties of hexagonal pyramids.
