Introduction

The Hemisphere Surface Area Calculator is a specialized tool designed to compute the volume, diameter, base area, cap area, total surface area, and surface-to-volume ratio of a hemisphere based on its radius (\( r \)). This calculator is essential for applications requiring precise geometric measurements, such as material estimation, structural design, and educational purposes.

Why is the “Hemisphere Surface Area Calculator” Important?

Accurate hemisphere calculations are vital for:

• Material Planning: Determining the amount of material (e.g., paint, coating) needed to cover hemispherical surfaces, such as domes or tank ends.
• Design Optimization: Ensuring efficient design of hemispherical structures, such as architectural domes or pressure vessel caps.
• Educational Purposes: Enhancing understanding of hemisphere geometry in mathematics and engineering education.
• Engineering Precision: Providing accurate measurements for manufacturing and construction projects involving hemispherical shapes.

How the “Hemisphere Surface Area Calculator” Works

The calculator processes the user’s input—radius with its unit—to calculate the hemisphere’s volume, diameter, base area, cap area, total surface area, and surface-to-volume ratio. It converts the input to meters for consistent computations, applies geometric formulas, and provides results in multiple units (cm, m, in, ft for lengths; cm², m², mm², in², ft² for area; cm³, m³, in³, ft³ for volume; cm⁻¹ for ratio) to suit various applications.

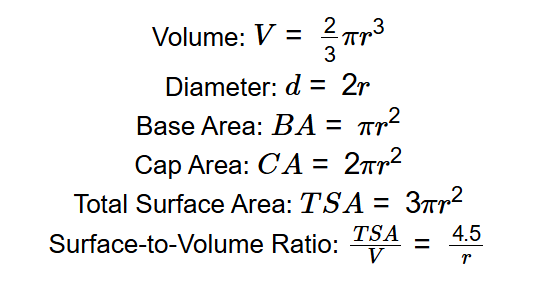

Formulas Used in the “Hemisphere Surface Area Calculator”

The calculator employs the following equations:

• Volume: \( V = \frac{2}{3} \pi r^3 \)
• Diameter: \( d = 2r \)
• Base Area: \( BA = \pi r^2 \)
• Cap Area: \( CA = 2 \pi r^2 \)
• Total Surface Area: \( TSA = 3 \pi r^2 \)
• Surface-to-Volume Ratio: \( \frac{TSA}{V} = \frac{4.5}{r} \)

Where:

• \( r \): Radius of the hemisphere (in mm, cm, m, in, ft).
• \( d \): Diameter of the hemisphere (in cm, m, in, ft).
• \( V \): Volume of the hemisphere (in cm³, m³, in³, ft³).
• \( BA \): Area of the circular base (in cm², m², mm², in², ft²).
• \( CA \): Area of the curved (cap) surface (in cm², m², mm², in², ft²).
• \( TSA \): Total surface area, including base and cap (in cm², m², mm², in², ft²).
• \( \frac{TSA}{V} \): Surface-to-volume ratio (in cm⁻¹).

Step-by-Step Breakdown of the Formulas

The calculation process involves:

1. Input Radius: Enter the radius (\( r \)) of the hemisphere and select a unit (mm, cm, m, in, ft).
2. Validate Input: Ensure \( r \) is a positive value.
3. Convert Units: Convert radius to meters using conversion factors (e.g., 1 mm = 0.001 m).
4. Calculate Diameter: Compute the diameter using \( d = 2r \).
5. Calculate Volume: Compute the volume using \( V = \frac{2}{3} \pi r^3 \).
6. Calculate Base Area: Compute the base area using \( BA = \pi r^2 \).
7. Calculate Cap Area: Compute the cap area using \( CA = 2 \pi r^2 \).
8. Calculate Total Surface Area: Compute the total surface area using \( TSA = 3 \pi r^2 \).
9. Calculate Surface-to-Volume Ratio: Compute the ratio using \( \frac{TSA}{V} = \frac{4.5}{r} \), with \( r \) in cm.
10. Convert Results: Convert diameter to cm, m, in, ft; volume to cm³, m³, in³, ft³; areas to cm², m², mm², in², ft².
11. Format Results: Display results with three decimal places for precision.

Example Calculation

6.1. Input Values

• Radius (\( r \)): 2 m

6.2. Calculation Steps

1. Diameter: \( d = 2 \times 2 = 4 \, \text{m} \)
2. Volume: \( V = \frac{2}{3} \pi \times 2^3 = \frac{2}{3} \pi \times 8 \approx \frac{2}{3} \times 3.1416 \times 8 \approx 16.755 \, \text{m}^3 \)
3. Base Area: \( BA = \pi \times 2^2 = \pi \times 4 \approx 3.1416 \times 4 = 12.566 \, \text{m}^2 \)
4. Cap Area: \( CA = 2 \pi \times 2^2 = 2 \pi \times 4 \approx 2 \times 3.1416 \times 4 = 25.133 \, \text{m}^2 \)
5. Total Surface Area: \( TSA = 3 \pi \times 2^2 = 3 \pi \times 4 \approx 3 \times 3.1416 \times 4 = 37.699 \, \text{m}^2 \)
6. Surface-to-Volume Ratio: \( \frac{TSA}{V} = \frac{4.5}{2 \times 100} = \frac{4.5}{200} = 0.023 \, \text{cm}^{-1} \)
7. Convert Units:
   • Volume: \( 16.755 \times 1000000 = 16755160.851 \, \text{cm}^3 \), \( 16.755 \div (0.0254)^3 \approx 1022555.996 \, \text{in}^3 \), \( 16.755 \div (0.3048)^3 \approx 591.822 \, \text{ft}^3 \)
   • Diameter: \( 4 \times 100 = 400.000 \, \text{cm} \), \( 4 \div 0.0254 \approx 157.480 \, \text{in} \), \( 4 \div 0.3048 \approx 13.123 \, \text{ft} \)
   • Base Area: \( 12.566 \times 10000 = 125663.706 \, \text{cm}^2 \), \( 12.566 \times 1000000 = 125663706.169 \, \text{mm}^2 \), \( 12.566 \times 1550 \approx 19478.076 \, \text{in}^2 \), \( 12.566 \times 10.7639 \approx 135.314 \, \text{ft}^2 \)
   • Cap Area: \( 25.133 \times 10000 = 251327.412 \, \text{cm}^2 \), \( 25.133 \times 1000000 = 251327412.337 \, \text{mm}^2 \), \( 25.133 \times 1550 \approx 38956.151 \, \text{in}^2 \), \( 25.133 \times 10.7639 \approx 270.627 \, \text{ft}^2 \)
   • Total Surface Area: \( 37.699 \times 10000 = 376991.118 \, \text{cm}^2 \), \( 37.699 \times 1000000 = 376991118.641 \, \text{mm}^2 \), \( 37.699 \times 1550 \approx 58433.837 \, \text{in}^2 \), \( 37.699 \times 10.7639 \approx 405.887 \, \text{ft}^2 \)
8. Results:
   • Volume: 16755160.851 cm³, 16.755 m³, 1022555.996 in³, 591.822 ft³
   • Diameter: 400.000 cm, 4.000 m, 157.480 in, 13.123 ft
   • Base Area: 125663.706 cm², 12.566 m², 125663706.169 mm², 19478.076 in², 135.314 ft²
   • Cap Area: 251327.412 cm², 25.133 m², 251327412.337 mm², 38956.151 in², 270.627 ft²
   • Total Surface Area: 376991.118 cm², 37.699 m², 376991118.641 mm², 58433.837 in², 405.887 ft²
   • Surface-to-Volume Ratio: 0.023 cm⁻¹

Conclusion

The Hemisphere Surface Area Calculator simplifies the computation of a hemisphere’s volume, diameter, base area, cap area, total surface area, and surface-to-volume ratio, providing results in multiple units for diverse applications. Its accuracy and user-friendly interface make it an essential tool for education, engineering, and design.

How to Use the “Hemisphere Surface Area Calculator”

8.1. Understanding the Input Fields

• Radius (\( r \)): Enter the radius of the hemisphere and select a unit (mm, cm, m, in, ft).

8.2. How to Interpret the Results

• Volume: The volume in cm³, m³, in³, ft³ (to 3 decimal places).
• Diameter: The diameter in cm, m, in, ft (to 3 decimal places).
• Base Area: The area of the circular base in cm², m², mm², in², ft² (to 3 decimal places).
• Cap Area: The area of the curved surface in cm², m², mm², in², ft² (to 3 decimal places).
• Total Surface Area: The total surface area, including base and cap, in cm², m², mm², in², ft² (to 3 decimal places).
• Surface-to-Volume Ratio: The ratio in cm⁻¹ (to 3 decimal places).

Practical Applications & Expert Insights

9.1. Where the “Hemisphere Surface Area Calculator” is Used

• Architecture: Designing hemispherical structures like domes or planetarium roofs.
• Manufacturing: Calculating material needs for hemispherical tank ends or containers.
• Education: Teaching geometric concepts of hemispheres in mathematics and engineering courses.
• Product Design: Estimating surface area for coating, painting, or wrapping hemispherical objects.

9.2. Real-Life Scenarios

• Construction Project: An architect calculates the surface area of a hemispherical dome to determine the amount of roofing material required.
• Industrial Production: A manufacturer estimates the material needed for a hemispherical cap on a pressure vessel.
• Classroom Learning: A student verifies hemisphere volume and surface area calculations for a geometry assignment.

9.3. Expert Recommendations

• Precision in Measurements: Ensure accurate radius input, as errors can significantly affect calculations.
• Unit Consistency: Select appropriate units for the application to avoid conversion errors.
• Material Allowance: Add 5-10% to the surface area for waste or overlap when planning material purchases.
• Verification: Cross-check results with manual calculations or CAD software for critical applications.

Frequently Asked Questions (FAQs)

10.1. What is the Hemisphere Surface Area Calculator?

It’s a tool that calculates the volume, diameter, base area, cap area, total surface area, and surface-to-volume ratio of a hemisphere based on its radius.

10.2. How is the surface area of a hemisphere determined?

The total surface area is calculated using \( TSA = 3 \pi r^2 \), where \( r \) is the radius, comprising the base area (\( \pi r^2 \)) and cap area (\( 2 \pi r^2 \)).

10.3. Why are multiple units provided for results?

Multiple units (cm, m, in, ft for lengths; cm², m², mm², in², ft² for area; cm³, m³, in³, ft³ for volume) accommodate diverse user needs across regions and industries.

10.4. Can the calculator handle negative or zero inputs?

No, the radius must be positive, as negative or zero values are invalid for a hemisphere’s geometry.

10.5. What are the practical applications of hemisphere calculations?

They are used in architecture, manufacturing, education, and product design to estimate material requirements and analyze hemispherical structures.

10.6. Where can I find more information on hemisphere geometry?

Refer to geometry textbooks, online resources like MathWorld (mathworld.wolfram.com), or consult mathematics educators for detailed hemisphere properties.
