Introduction

The Cylinder Surface Area Calculator is a versatile tool designed to compute the volume, bases area, lateral surface area (LSA), and total surface area (TSA) of a right circular cylinder based on its radius (\( r \)) and height (\( h \)). This calculator is invaluable for applications requiring precise geometric measurements, such as material estimation, structural design, and educational purposes.

Why is the “Cylinder Surface Area Calculator” Important?

Accurate cylinder calculations are essential for:

• Material Planning: Determining the amount of material (e.g., metal, paint, wrapping) needed to cover or coat cylindrical objects like pipes, cans, or tanks.
• Design Optimization: Ensuring efficient design of cylindrical structures, such as storage tanks or columns, for functionality and aesthetics.
• Educational Purposes: Enhancing understanding of cylinder geometry in mathematics and engineering education.
• Engineering Precision: Providing accurate measurements for manufacturing and construction projects involving cylindrical shapes.

How the “Cylinder Surface Area Calculator” Works

The calculator processes user inputs—radius and height with their respective units—to calculate the cylinder’s volume, bases area, lateral surface area, and total surface area. It converts inputs to meters for consistent computations, applies geometric formulas, and provides results in multiple units (cm², m², mm², in², ft² for area; cm³, m³, in³, ft³ for volume) to suit various applications.

Formulas Used in the “Cylinder Surface Area Calculator”

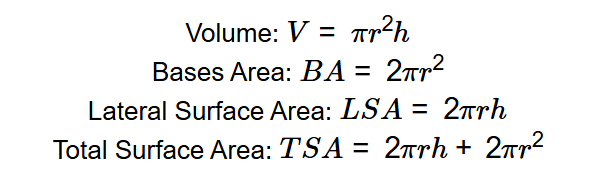

The calculator employs the following equations:

• Volume: \( V = \pi r^2 h \)
• Bases Area: \( BA = 2 \pi r^2 \)
• Lateral Surface Area: \( LSA = 2 \pi r h \)
• Total Surface Area: \( TSA = 2 \pi r h + 2 \pi r^2 \)

Where:

• \( r \): Radius of the cylinder’s base (in mm, cm, m, in, ft).
• \( h \): Height of the cylinder (in mm, cm, m, in, ft).
• \( V \): Volume of the cylinder (in cm³, m³, in³, ft³).
• \( BA \): Combined area of the two circular bases (in cm², m², mm², in², ft²).
• \( LSA \): Lateral surface area of the cylinder (in cm², m², mm², in², ft²).
• \( TSA \): Total surface area, including bases and lateral surface (in cm², m², mm², in², ft²).

Step-by-Step Breakdown of the Formulas

The calculation process involves:

1. Input Radius and Height: Enter the radius (\( r \)) and height (\( h \)) of the cylinder, selecting units (mm, cm, m, in, ft).
2. Validate Inputs: Ensure \( r \) and \( h \) are positive values.
3. Convert Units: Convert radius and height to meters using conversion factors (e.g., 1 mm = 0.001 m).
4. Calculate Volume: Compute the volume using \( V = \pi r^2 h \).
5. Calculate Bases Area: Compute the combined area of the two bases using \( BA = 2 \pi r^2 \).
6. Calculate Lateral Surface Area: Compute the lateral surface area using \( LSA = 2 \pi r h \).
7. Calculate Total Surface Area: Compute the total surface area using \( TSA = 2 \pi r h + 2 \pi r^2 \).
8. Convert Results: Convert volume to cm³, m³, in³, ft³; convert areas to cm², m², mm², in², ft².
9. Format Results: Display results with three decimal places for precision.

Example Calculation

6.1. Input Values

• Radius (\( r \)): 2 m
• Height (\( h \)): 3 m

6.2. Calculation Steps

1. Volume: \( V = \pi \times 2^2 \times 3 = \pi \times 4 \times 3 \approx 3.1416 \times 12 = 37.699 \, \text{m}^3 \)
2. Bases Area: \( BA = 2 \pi \times 2^2 = 2 \pi \times 4 \approx 2 \times 3.1416 \times 4 = 25.133 \, \text{m}^2 \)
3. Lateral Surface Area: \( LSA = 2 \pi \times 2 \times 3 = 2 \pi \times 6 \approx 2 \times 3.1416 \times 6 = 37.699 \, \text{m}^2 \)
4. Total Surface Area: \( TSA = 37.699 + 25.133 = 62.832 \, \text{m}^2 \)
5. Convert Units:
   • Volume: \( 37.699 \times 1000000 = 37699111.864 \, \text{cm}^3 \), \( 37.699 \div (0.0254)^3 \approx 2300750.992 \, \text{in}^3 \), \( 37.699 \div (0.3048)^3 \approx 1331.601 \, \text{ft}^3 \)
   • Bases Area: \( 25.133 \times 10000 = 251327.412 \, \text{cm}^2 \), \( 25.133 \times 1000000 = 251327412.337 \, \text{mm}^2 \), \( 25.133 \times 1550 \approx 38956.151 \, \text{in}^2 \), \( 25.133 \times 10.7639 \approx 270.627 \, \text{ft}^2 \)
   • Lateral Surface Area: \( 37.699 \times 10000 = 376991.118 \, \text{cm}^2 \), \( 37.699 \times 1000000 = 376991118.641 \, \text{mm}^2 \), \( 37.699 \times 1550 \approx 58433.837 \, \text{in}^2 \), \( 37.699 \times 10.7639 \approx 405.887 \, \text{ft}^2 \)
   • Total Surface Area: \( 62.832 \times 10000 = 628318.530 \, \text{cm}^2 \), \( 62.832 \times 1000000 = 628318530.978 \, \text{mm}^2 \), \( 62.832 \times 1550 \approx 97389.988 \, \text{in}^2 \), \( 62.832 \times 10.7639 \approx 676.514 \, \text{ft}^2 \)
6. Results:
   • Volume: 37699111.864 cm³, 37.699 m³, 2300750.992 in³, 1331.601 ft³
   • Bases Area: 251327.412 cm², 25.133 m², 251327412.337 mm², 38956.151 in², 270.627 ft²
   • Lateral Surface Area: 376991.118 cm², 37.699 m², 376991118.641 mm², 58433.837 in², 405.887 ft²
   • Total Surface Area: 628318.530 cm², 62.832 m², 628318530.978 mm², 97389.988 in², 676.514 ft²

Conclusion

The Cylinder Surface Area Calculator simplifies the computation of a cylinder’s volume, bases area, lateral surface area, and total surface area, providing results in multiple units for diverse applications. Its accuracy and user-friendly interface make it an essential tool for education, engineering, and design.

How to Use the “Cylinder Surface Area Calculator”

8.1. Understanding the Input Fields

• Radius (\( r \)): Enter the radius of the cylinder’s base and select a unit (mm, cm, m, in, ft).
• Height (\( h \)): Enter the height of the cylinder and select a unit (mm, cm, m, in, ft).

8.2. How to Interpret the Results

• Volume: The volume in cm³, m³, in³, ft³ (to 3 decimal places).
• Bases Area: The combined area of the two circular bases in cm², m², mm², in², ft² (to 3 decimal places).
• Lateral Surface Area (LSA): The lateral surface area in cm², m², mm², in², ft² (to 3 decimal places).
• Total Surface Area (TSA): The total surface area, including bases and lateral surface, in cm², m², mm², in², ft² (to 3 decimal places).

Practical Applications & Expert Insights

9.1. Where the “Cylinder Surface Area Calculator” is Used

• Architecture: Designing cylindrical structures like columns, silos, or water tanks.
• Manufacturing: Calculating material needs for cylindrical containers, pipes, or cans.
• Education: Teaching geometric concepts of cylinders in mathematics and engineering courses.
• Product Design: Estimating surface area for coating, painting, or wrapping cylindrical objects.

9.2. Real-Life Scenarios

• Construction Project: An engineer calculates the surface area of a cylindrical water tank to determine the amount of protective coating required.
• Industrial Production: A manufacturer estimates the metal needed for a cylindrical pipe in a plumbing system.
• Classroom Learning: A student verifies cylinder volume and surface area calculations for a geometry assignment.

9.3. Expert Recommendations

• Precision in Measurements: Ensure accurate radius and height inputs, as errors can significantly affect calculations.
• Unit Consistency: Use the same unit for radius and height to avoid conversion errors.
• Material Allowance: Add 5-10% to the surface area for waste or overlap when planning material purchases.
• Verification: Cross-check results with manual calculations or CAD software for critical applications.

Frequently Asked Questions (FAQs)

10.1. What is the Cylinder Surface Area Calculator?

It’s a tool that calculates the volume, bases area, lateral surface area, and total surface area of a cylinder based on its radius and height.

10.2. How is the surface area of a cylinder determined?

The total surface area is calculated using \( TSA = 2 \pi r h + 2 \pi r^2 \), where \( r \) is the radius and \( h \) is the height.

10.3. Why are multiple units provided for results?

Multiple units (cm², m², mm², in², ft² for area; cm³, m³, in³, ft³ for volume) accommodate diverse user needs across regions and industries.

10.4. Can the calculator handle negative or zero inputs?

No, radius and height must be positive, as negative or zero values are invalid for a cylinder’s geometry.

10.5. What are the practical applications of cylinder calculations?

They are used in architecture, manufacturing, education, and product design to estimate material requirements and analyze cylindrical structures.

10.6. Where can I find more information on cylinder geometry?

Refer to geometry textbooks, online resources like MathWorld (mathworld.wolfram.com), or consult mathematics educators for detailed cylinder properties.
