Introduction

The Cone Surface Area Calculator is a powerful tool designed to compute the total surface area, base circumference, and slant height of a right circular cone based on its radius (\( r \)) and height (\( h \)). This calculator is essential for applications requiring precise geometric measurements, such as material estimation and design optimization for conical structures.

Why is the “Cone Surface Area Calculator” Important?

Accurate cone surface area calculations are vital for:

• Material Planning: Determining the quantity of materials (e.g., metal, fabric, paint) needed to cover or coat conical objects.
• Design Efficiency: Optimizing the design of conical structures, such as roofs, funnels, or traffic cones, for functionality and aesthetics.
• Educational Purposes: Enhancing understanding of cone geometry in mathematics and engineering education.
• Engineering Accuracy: Ensuring precise measurements for manufacturing and construction projects involving conical shapes.

How the “Cone Surface Area Calculator” Works

The calculator processes user inputs—radius and height with their respective units—to calculate the cone’s base circumference, slant height, and total surface area. It converts inputs to meters for consistent computations, applies geometric formulas, and provides results in multiple units (cm, m, in, ft for lengths; cm², m², mm², in², ft² for area) to suit various applications.

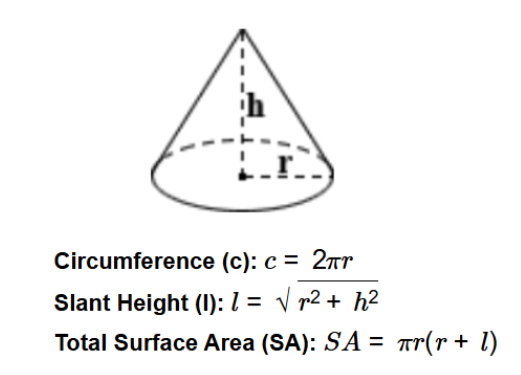

Formulas Used in the “Cone Surface Area Calculator”

The calculator employs the following equations:

• Circumference: \( c = 2 \pi r \)
• Slant Height: \( l = \sqrt{r^2 + h^2} \)
• Total Surface Area: \( SA = \pi r (r + l) \)

4.1. Where:

• \( r \): Radius of the cone’s base (in mm, cm, m, in, ft).
• \( h \): Height of the cone (in mm, cm, m, in, ft).
• \( c \): Circumference of the base (in cm, m, in, ft).
• \( l \): Slant height of the cone (in cm, m, in, ft).
• \( SA \): Total surface area, including base and lateral surface (in cm², m², mm², in², ft²).

Step-by-Step Breakdown of the Formulas

The calculation process involves:

1. Input Radius and Height: Enter the radius (\( r \)) and height (\( h \)) of the cone, selecting units (mm, cm, m, in, ft).
2. Validate Inputs: Ensure \( r \) and \( h \) are positive values.
3. Convert Units: Convert radius and height to meters using conversion factors (e.g., 1 mm = 0.001 m).
4. Calculate Circumference: Compute the base circumference using \( c = 2 \pi r \).
5. Calculate Slant Height: Compute the slant height using \( l = \sqrt{r^2 + h^2} \).
6. Calculate Surface Area: Compute the total surface area using \( SA = \pi r (r + l) \).
7. Convert Results: Convert circumference and slant height to cm, m, in, ft; convert surface area to cm², m², mm², in², ft².
8. Format Results: Display results with three decimal places for precision.

Example Calculation

6.1. Input Values

• Radius (\( r \)): 2 m
• Height (\( h \)): 3 m

6.2. Calculation Steps

1. Circumference: \( c = 2 \pi \times 2 \approx 12.566 \, \text{m} \)
2. Slant Height: \( l = \sqrt{2^2 + 3^2} = \sqrt{4 + 9} = \sqrt{13} \approx 3.606 \, \text{m} \)
3. Total Surface Area: \( SA = \pi \times 2 \times (2 + 3.606) \approx 3.1416 \times 2 \times 5.606 \approx 35.186 \, \text{m}^2 \)
4. Convert Units:
   • Circumference: \( 12.566 \times 100 = 1256.637 \, \text{cm} \), \( 12.566 \div 0.0254 \approx 494.803 \, \text{in} \), \( 12.566 \div 0.3048 \approx 41.234 \, \text{ft} \)
   • Slant Height: \( 3.606 \times 100 = 360.555 \, \text{cm} \), \( 3.606 \div 0.0254 \approx 141.969 \, \text{in} \), \( 3.606 \div 0.3048 \approx 11.831 \, \text{ft} \)
   • Surface Area: \( 35.186 \times 10000 = 351858.590 \, \text{cm}^2 \), \( 35.186 \times 1000000 = 35185859.032 \, \text{mm}^2 \), \( 35.186 \times 1550 \approx 54538.473 \, \text{in}^2 \), \( 35.186 \times 10.7639 \approx 378.737 \, \text{ft}^2 \)
5. Results:
   • Circumference: 1256.637 cm, 12.566 m, 494.803 in, 41.234 ft
   • Slant Height: 360.555 cm, 3.606 m, 141.969 in, 11.831 ft
   • Surface Area: 351858.590 cm², 35.186 m², 35185859.032 mm², 54538.473 in², 378.737 ft²

Conclusion

The Cone Surface Area Calculator simplifies the computation of a cone’s circumference, slant height, and total surface area, providing results in multiple units for diverse applications. Its accuracy and user-friendly interface make it an essential tool for education, engineering, and design.

How to Use the “Cone Surface Area Calculator”

8.1. Understanding the Input Fields

• Radius (\( r \)): Enter the base radius of the cone and select a unit (mm, cm, m, in, ft).
• Height (\( h \)): Enter the cone’s height and select a unit (mm, cm, m, in, ft).

8.2. How to Interpret the Results

• Circumference (\( c \)): The base circumference in cm, m, in, ft (to 3 decimal places).
• Slant Height (\( l \)): The slant height in cm, m, in, ft (to 3 decimal places).
• Total Surface Area: The surface area, including base and lateral surface, in cm², m², mm², in², ft² (to 3 decimal places).

Practical Applications & Expert Insights

9.1. Where the “Cone Surface Area Calculator” is Used

• Architecture: Designing conical roofs, spires, or decorative structures.
• Manufacturing: Calculating material needs for conical containers, funnels, or traffic cones.
• Education: Teaching geometric concepts of cones in mathematics and engineering courses.
• Product Design: Estimating surface area for coating, painting, or wrapping conical objects.

9.2. Real-Life Scenarios

• Construction Project: An architect calculates the surface area of a conical roof to determine the amount of shingles required.
• Industrial Production: A manufacturer estimates the metal needed for a conical funnel in a processing plant.
• Classroom Learning: A student verifies cone surface area calculations for a geometry assignment.

9.3. Expert Recommendations

• Precision in Measurements: Ensure accurate radius and height inputs, as errors can significantly affect surface area calculations.
• Unit Consistency: Use the same unit for radius and height to avoid conversion errors.
• Material Allowance: Add 5-10% to the surface area for waste or overlap when planning material purchases.
• Verification: Cross-check results with manual calculations or CAD software for critical applications.

Frequently Asked Questions (FAQs)

10.1. What is the Cone Surface Area Calculator?

It’s a tool that calculates the base circumference, slant height, and total surface area of a right circular cone based on its radius and height.

10.2. How is the surface area of a cone determined?

The total surface area is calculated using \( SA = \pi r (r + l) \), where \( r \) is the radius and \( l \) is the slant height (\( l = \sqrt{r^2 + h^2} \)).

10.3. Why are multiple units provided for results?

Multiple units (cm, m, in, ft for lengths; cm², m², mm², in², ft² for area) accommodate diverse user needs across regions and industries.

10.4. Can the calculator handle negative or zero inputs?

No, radius and height must be positive, as negative or zero values are invalid for a cone’s geometry.

10.5. What are the practical applications of cone surface area calculations?

They are used in architecture, manufacturing, education, and product design to estimate material requirements and analyze conical structures.

10.6. Where can I find more information on cone geometry?

Refer to geometry textbooks, online resources like MathWorld (mathworld.wolfram.com), or consult mathematics educators for detailed cone properties.
